Digital Asphalt Component Set with 10,000lbf Load Cell (110V, 50/60Hz)

Asphalt Component Sets are available with analog or digital components to adapt Marshall Stability Systems. The high-quality instrumentation is used to measure load and deformation in accordance with ASTM D6927 or D5581 and AASHTO T 245 and T283 requirements.

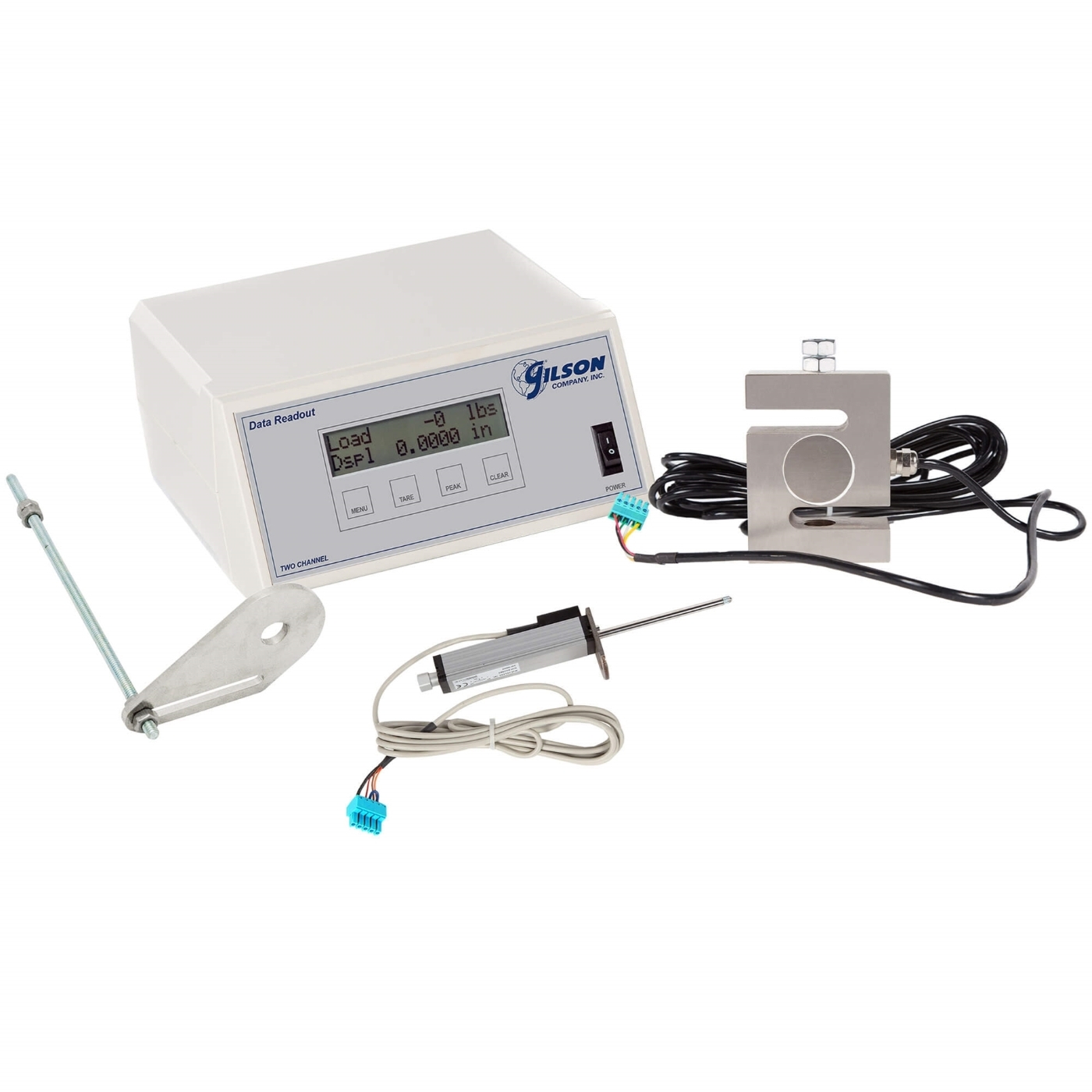

Digital Sets include the HM-418 Two-Channel Data Readout, HM-430D 10,000lbf Load Cell, HMA-407 Loading Button, and HM-740 2in Linear Variable Displacement Transducer (LVDT) with HMA-401 Mounting Bracket. The readout features a large, bright display and four panel keys that allow instant taring and live data. the included GetData 5 software exports data via mini USB port to Excel® or similar programs for review, analysis, and reporting.

MSA-134 Marshall Data Acquisition Software, listed separately, works with MSA-860D to record specimen and real-time test data, calculate results, and prepare reports meeting ASTM and AASHTO requirements.

Note: The Data Acquisition Software can only be used with digital component sets.

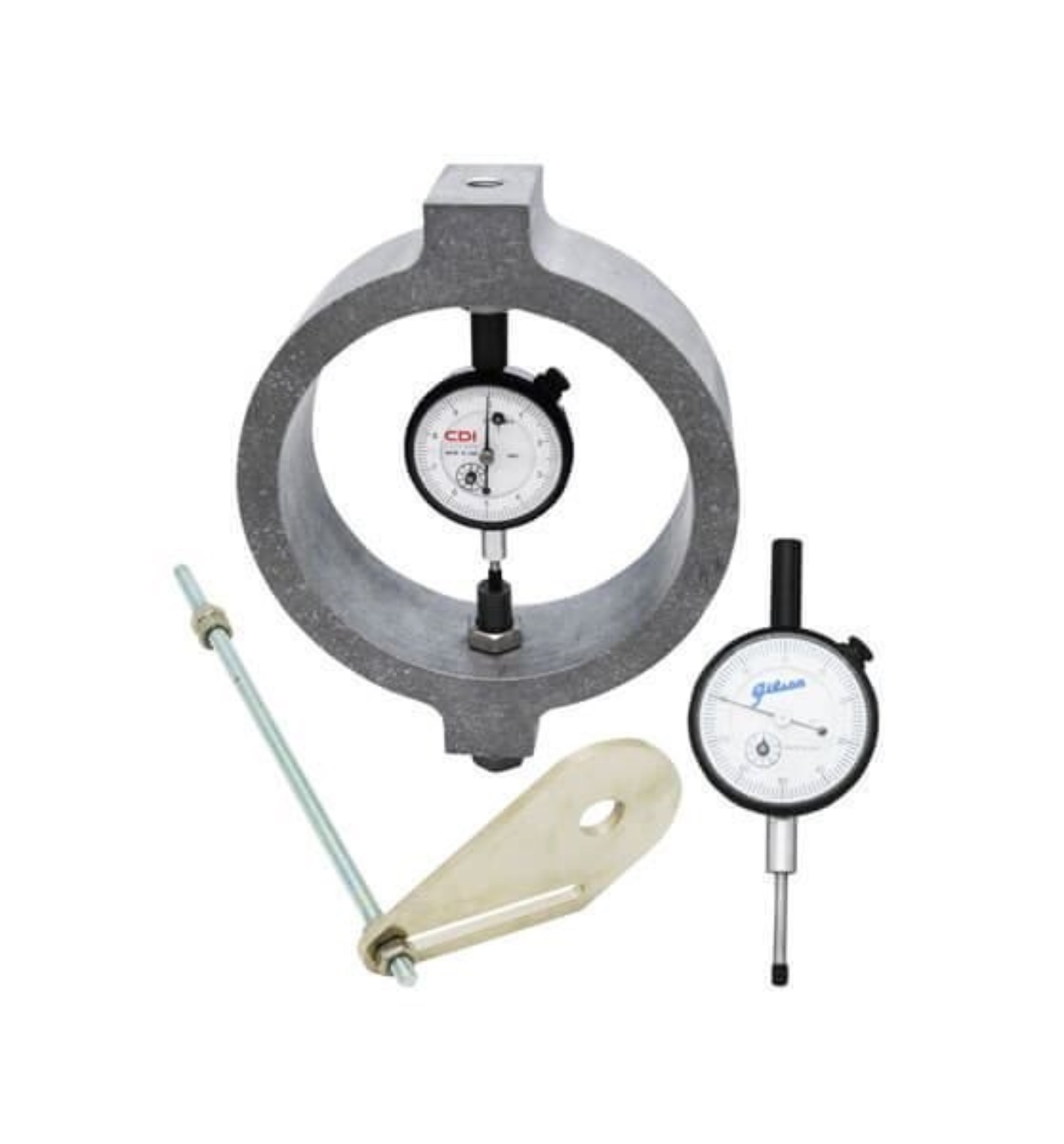

Analog Set includes the HM-430 10,000lbf high-strength aluminum alloy Load Ring with a factory calibration chart, 1x0.001in Mechanical Dial Indicator with low friction mechanism, and the HMA-339 Mounting Bracket for the Dial Indicator.

Features:

• Components easily convert Load Frames to perform Marshall Stability Tests on hot-mix asphalt samples

Included Items:

• Digital Asphalt Component Set
  • 10,000lbf Load Cell
  • Loading Button
  • 2in Linear Variable Transducer with Mounting Bracket
  • Two-Channel Data Readout (110V, 50/60Hz or 230V, 50/60Hz)
• Analog Asphalt Component Set
  • 10,000lbf Load Ring
  • Loading Button
  • 1in Mechanical Dial Indicator
  • Dial Indicator Bracket

Accessories:

• Dial Indicator/Displacement Transducer Mounting Bracket positions the dial indicator or LVDT on the load frame
• Two-Channel Data Readout works with load cells to produce readings during testing without time delays
• Readout Mounting Bracket to position data readout on load frames
• 10,000lbf Load Cell outputs values to the data readout
• 2in Linear Variable Displacement Transducer used in determining displacement measurements
• Marshall Data Acquisition Software ONLY works with the Digital Component Sets to record specimen information and real-time test data, calculate results, then prepare reports following ASTM requirements.
• 10,000lbf Load Ring for measuring applied force in lab
• 1inx0.001in Mechanical Dial Indicator for determining accurate displacement readings
• Loading Buttons thread into load cell and load ring mounts to provide a uniform contact point for testing fixtures
