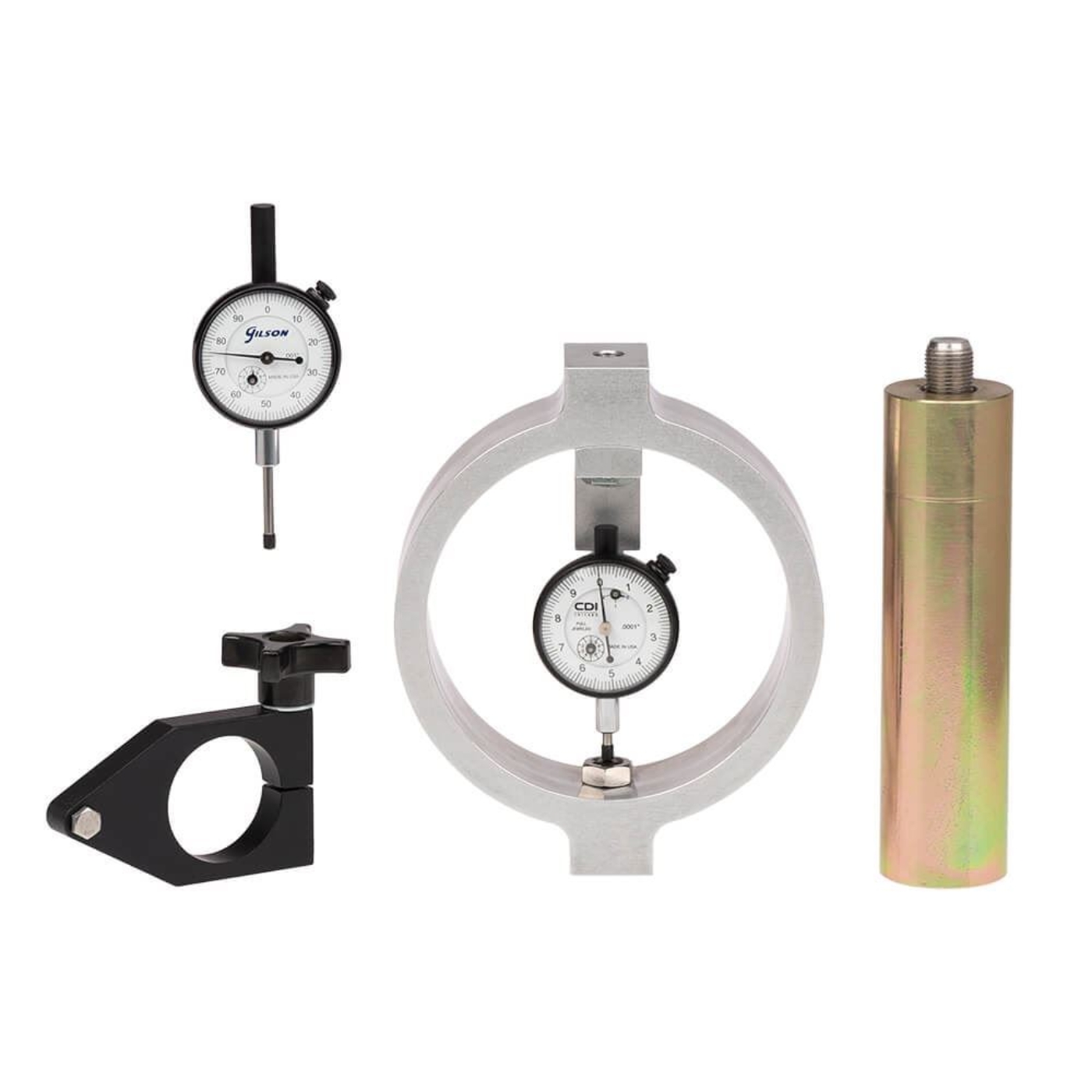

Analog CBR Component Set w/6,000lbf Capacity is a grouping of high-quality products used to equip Load Frames to perform the California Bearing Ratio (CBR) laboratory tests. Components of the set easily install on the Load Frame and are also available separately. The set includes BRA-31 CBR Penetration Piston, with a 1/2in (12.7mm) diameter; BRA-34 Transducer/Dial Indicator Holder for securing to the Penetration Piston; MA-334 Dial Indicator, 1x0.001in to provide accurate displacement readings; and HM-428 6,000lbf Load Ring for measuring applied force.

Features:

Contains products needed for analog CBR testing
Easy to install on Load Frame

Included Items:

CBR Penetration Piston
Transducer/Dial Indicator Holder
Dial Indicator
6,000lbf Load Ring

Accessories:

BRA-31 CBR Penetration Piston designed specifically for CBR testing
BRA-34 Transducer/Dial Indicator Holder ensures proper positioning for penetration measurement
MA-334 Dial Indicator, 1x0.001in easily adapts for vertical or horizontal mounting
HM-428 6,000lbf Load Ring measures load to the accuracy of ±0.5%

Specifications

Attribute name	Attribute value
Configuration	Analog
Load Capacity	6,000lbf
Estimated Shipping Weight	16.0lb (7.26kg)

Quick Compare

Features	CBR Digital Component Set with 10,000lbf Load Cell (110V, 50/60Hz)	CBR Digital Component Set with 10,000lbf Load Cell (230V, 50/60Hz)	CBR Analog Component Set with 10,000lbf Load Ring	CBR Analog Component Set with 6,000lbf Load Ring
Pricing	$2,065.00	$2,065.00	$927.00	$902.00
Configuration	Digital	Digital	Analog	Analog
Load Capacity	10,000lbf	10,000lbf	10,000lbf	6,000lbf
Estimated Shipping Weight	25.0lb (11.34kg)	25.0lb (11.34kg)	16.0lb (7.26kg)	16.0lb (7.26kg)
