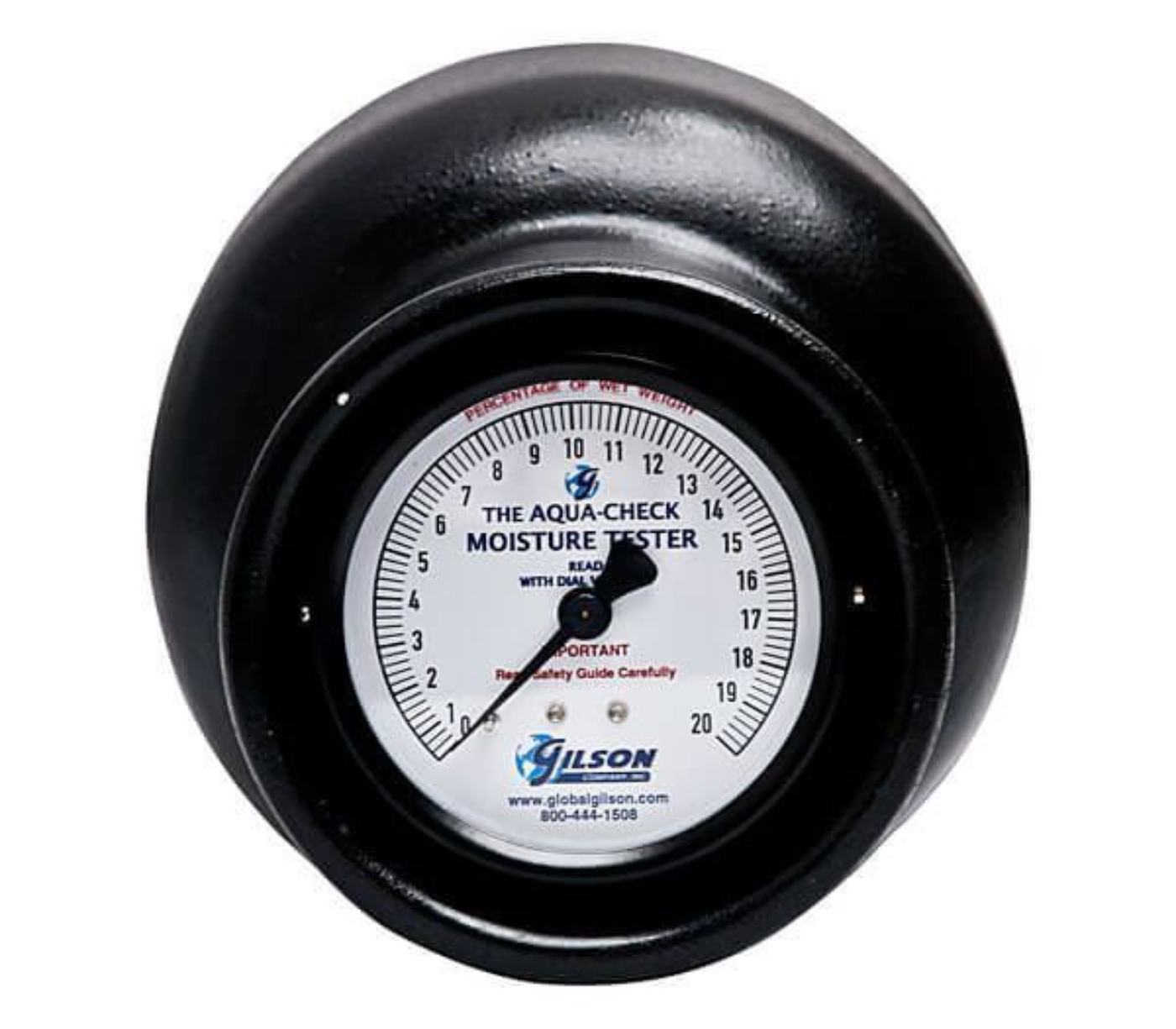

Gilson Aqua-Check Moisture Tester is made in the USA and offers an affordable choice for rapid, accurate, and reliable moisture tests on sand, aggregates, ores, coal, soils, and other materials with a particle size up to 20mm. Samples can be quickly tested on-site, eliminating delay and risk of moisture loss during transport. Portable units are easy to use and meet ASTM, AASHTO, and Florida DOT standards.

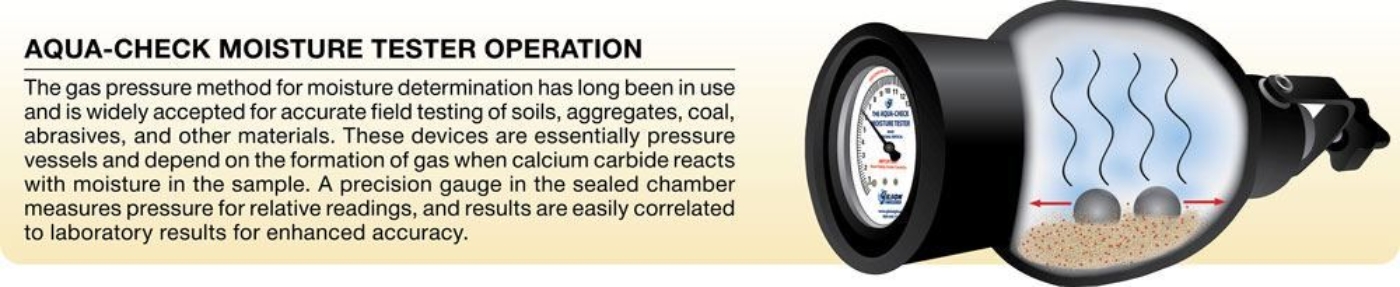

A pre-weighed 20g sample is placed in the test chamber, along with a measured quantity of Calcium Carbide Reagent (sold separately). When the cell is sealed and agitated for one to three minutes, free moisture in the test sample reacts with the reagent to produce acetylene gas. The integral pressure gauge registers 0–20% moisture by weight in 0.2% graduations. Moisture range can be doubled by halving the pre-weighed sample weight.

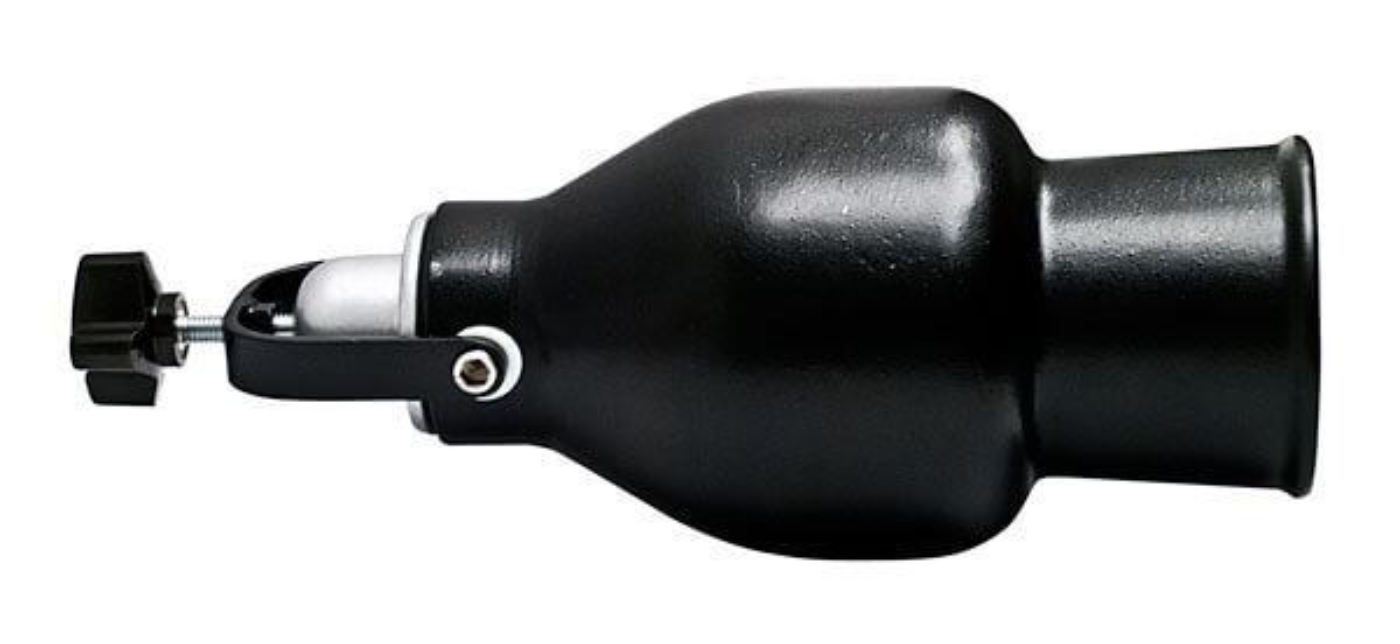

The Aqua-Check has a rugged, die-cast aluminum body with a tough, wear-resistant coating and includes a 0–20% pressure gauge, with a certificate of calibration. Models are also supplied with an electronic digital balance, two 1.25in (32mm) dia. steel pulverizing balls, reagent measuring scoop, brush, and instructions in a heavy-duty, waterproof plastic case.
The high-quality pressure gauge and all accessories are compatible with both Aqua-Check and Speedy 2000 Moisture Testers. MAA-45 Aqua-Check Pressure Gauge includes a certificate of calibration. Recalibration service is available as MAA-53. Contact us for assistance.
Features:
- The affordable, accurate choice for rapid moisture tests on sand, aggregates, ores, coal, soils, and materials up to 20mm
- Tests are complete in minutes; no delays waiting for results
- No moisture loss during transport
- ASTM, AASHTO, and Florida DOT-compliant
- Parts and accessories are compatible with Speedy 2000 Moisture Testers

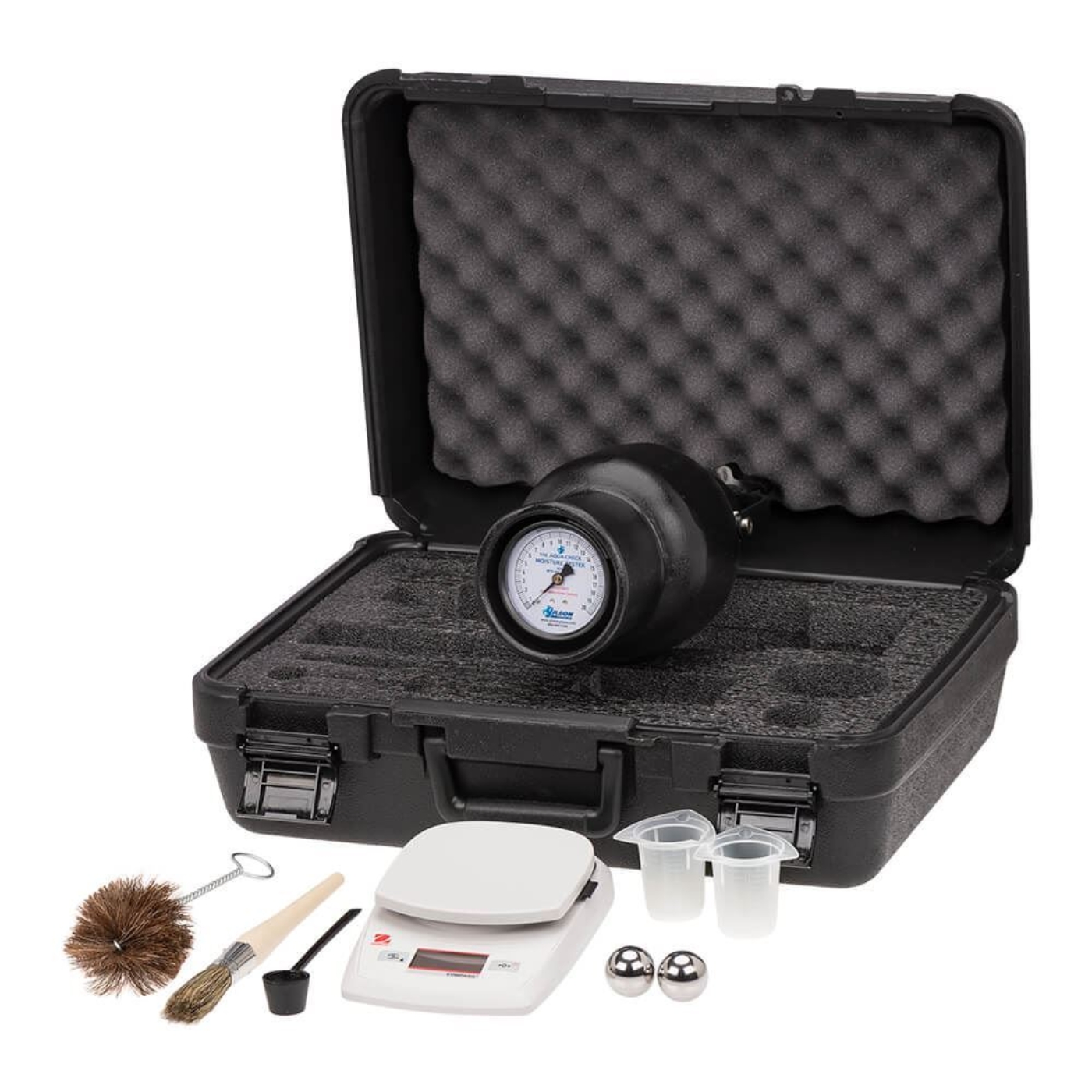

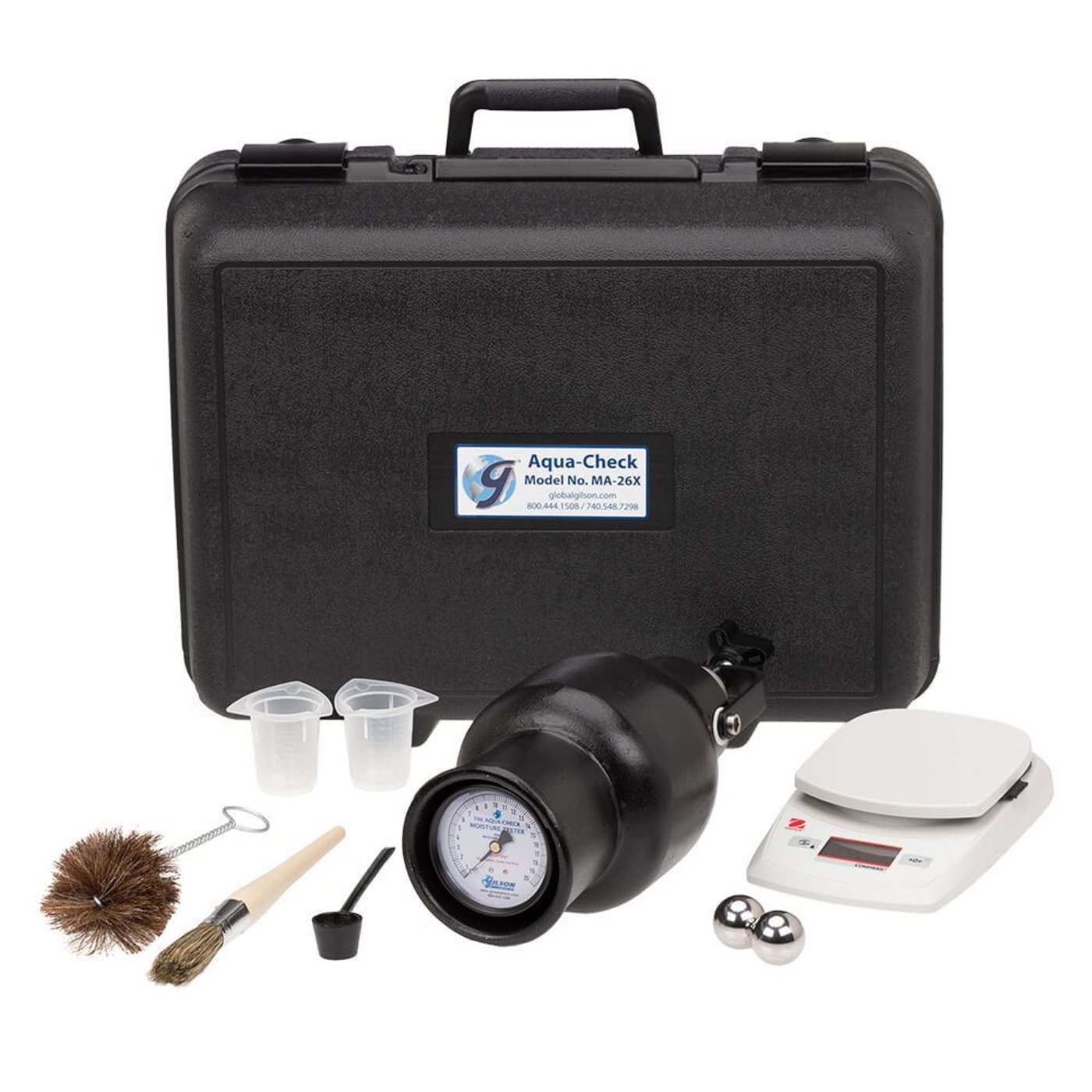

Included Items:
- Gilson Aqua-Check Moisture Tester
- 0–20 x 0.2% pressure gauge
- Certificate of calibration
- Electronic digital balance
- Two 1.25in (35mm) dia. steel pulverizing balls
- Reagent measuring scoop, brush, and instructions
- Heavy-duty waterproof plastic case
Accessories:

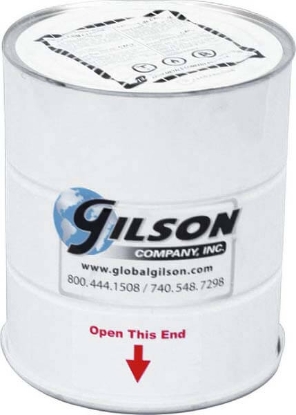

- MAA-44 Calcium Carbide Reagent is used with the specimen in the testing

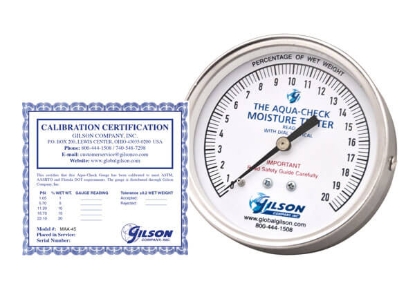

- MAA-45 Aqua-Check Pressure Gauge is available as a replacement gauge
- MAA-50 Small Fine Bristle Brush cleans fine residue after testing
- MAA-48 Long-Handled Reagent Scoop is used to safely scoop harsh reagents

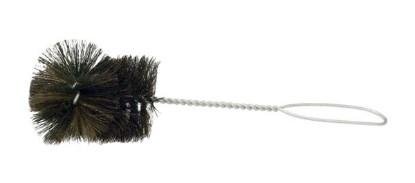

- MAA-51 Large Coarse Clean-Out Brush is for easy clean-up after testing coarse samples

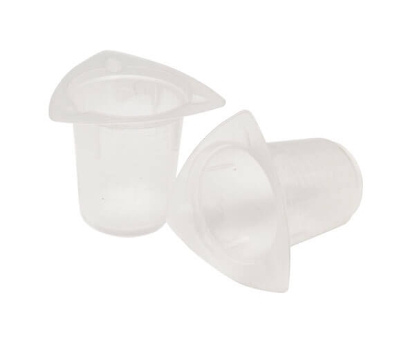

- MAA-52 Plastic Sample Cup is for holding or weighing specimens and is reusable

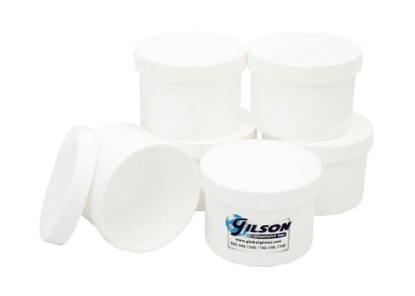

- Plastic Sample Containers are available in 2, 4, 8, 16, or 32oz capacities and are used in storing or transporting samples

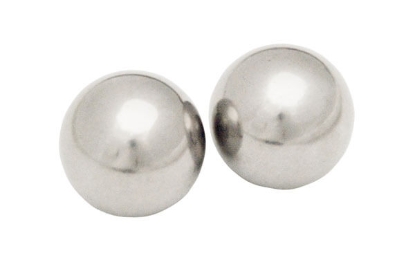

- MAA-47 Pulverizing Steel Balls are for agitating test samples and reagent in testing

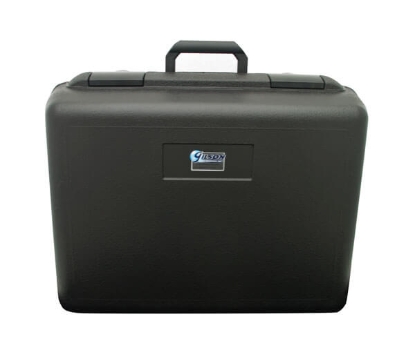

- MAA-46 Heavy-Duty Waterproof Plastic Case is for storing and transporting moisture tester and other items for testing

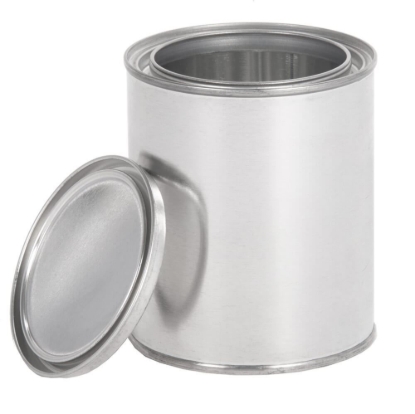

- MAA-43 Empty 1lb Metal Can for Reagent is used to hold a smaller amount of Calcium Carbide Reagent
- OB-205 220g Ohaus Compact Scale is for weighing applications when using moisture testers

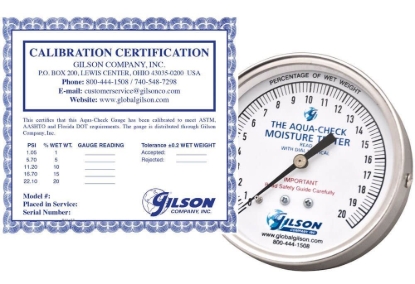

- MAA-53 Calibration Service for Aqua-Check is used for periodic recalibration to ensure the accuracy and performance of the Aqua Pressure Gauge
