Swivel Top Platens are required to measure the compressive strength of soil-cement specimens in compliance with ASTM D1633. Platens distribute loads properly for soil-cement testing with Load Frames.

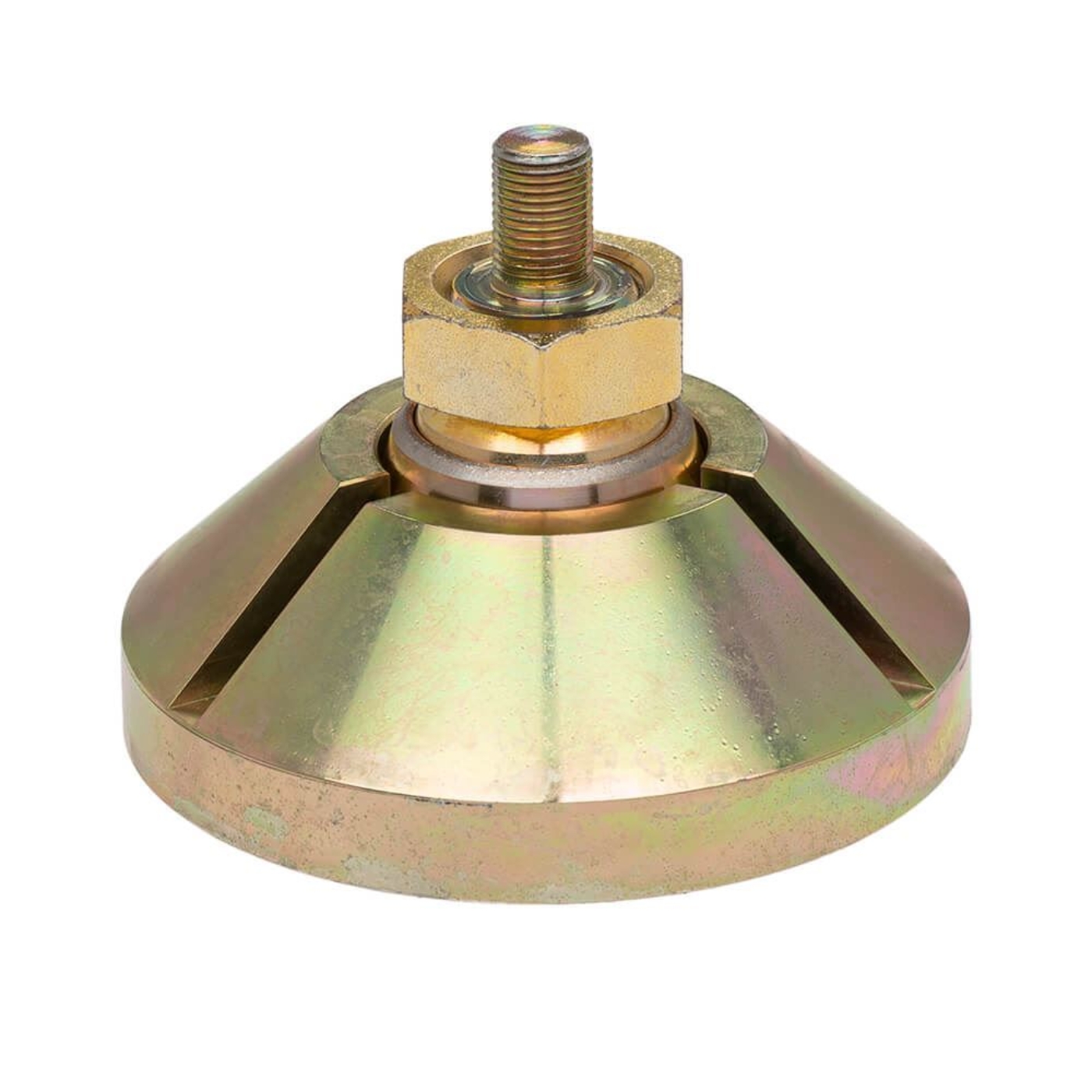

HMA-129 can test soil-cement samples up to 4in (102mm). It has a diameter of 4.25in with 1/2in x 20tpi attachment. Suitable for 500lbf to 2,500lbf S-type Load Cells and all Gilson Load Rings.

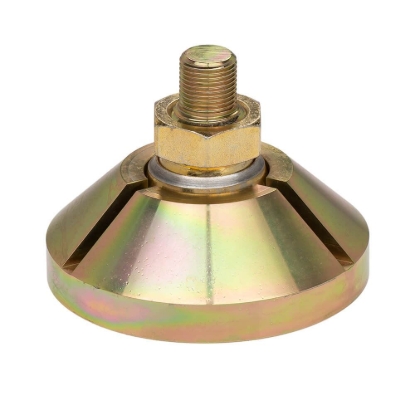

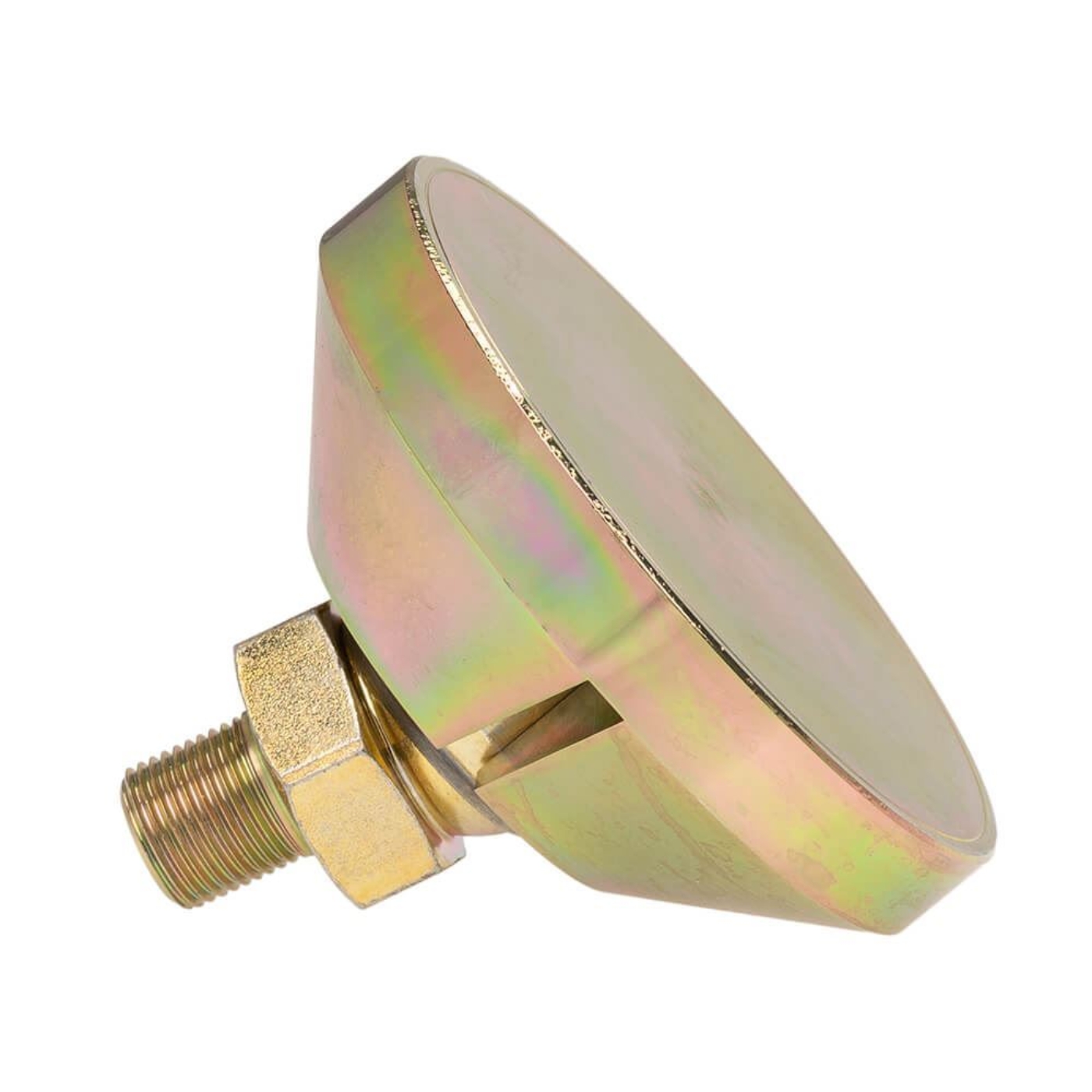

HMA-129B can also test soil-cement samples up to 4in (102mm) and has a diameter of 4.25in. The difference is, it has a 3/4in x 16tpi attachment. This model is available individually or is included in the HMA-687 and HMA-687D Soil-Cement Component Sets as a component. Suitable for use with 5,000lbf and 10,000lbf load cells.

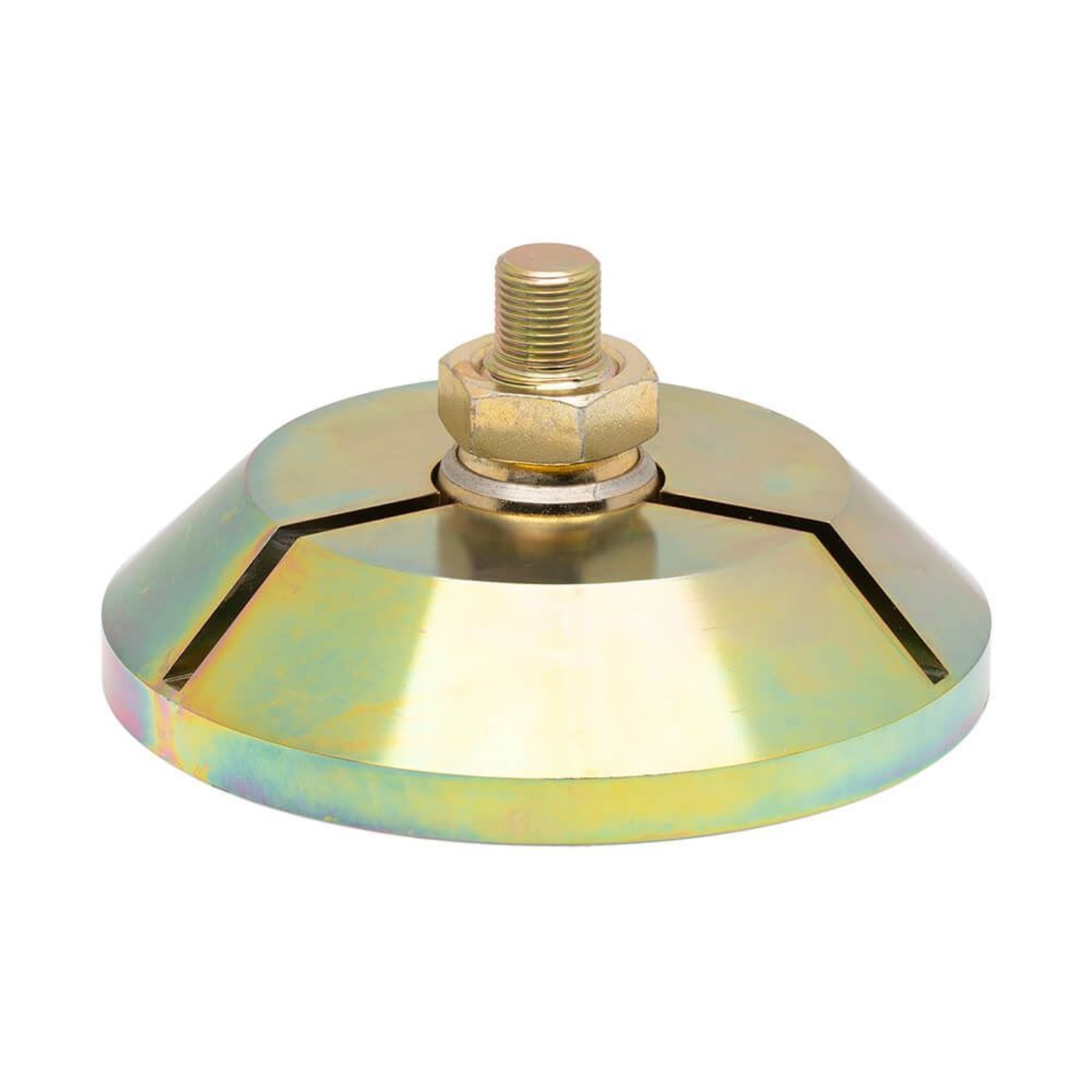

HMA-129A can test soil-cement samples up to 6in (152mm). It has a diameter of 6.25in with 3/4in x 16tpi attachment.  Suitable for use with 5,000lbf and 10,000lbf load cells.

Included Items:

Swivel Top Platen (4.25in or 6.25in)

Accessories:

HMA-612 Soil Cement Data Acquisition Software records real-time test and specimen data for a variety of soil laboratory tests and create ASTM and AASHTO compliant reports.

Specifications

Attribute name	Attribute value
Diameter	4.25in (108mm) or 6.25in (158.8mm)
Estimated Shipping Weight	HMA-129: 5.0lb (2.27kg) HMA-129B: 5.0lb (2.27kg) HMA-129A: 7.0lb (3.18kg)
