Soil-Cement Component Sets meet ASTM D1633 test standards and available with either analog or digital components. Sets include high-quality instrumentation that is easily installed on Gilson Load Frames and most other manufacturers. The components are used to measure load and displacement when performing unconfined compressive strength tests on soil-cement tests.

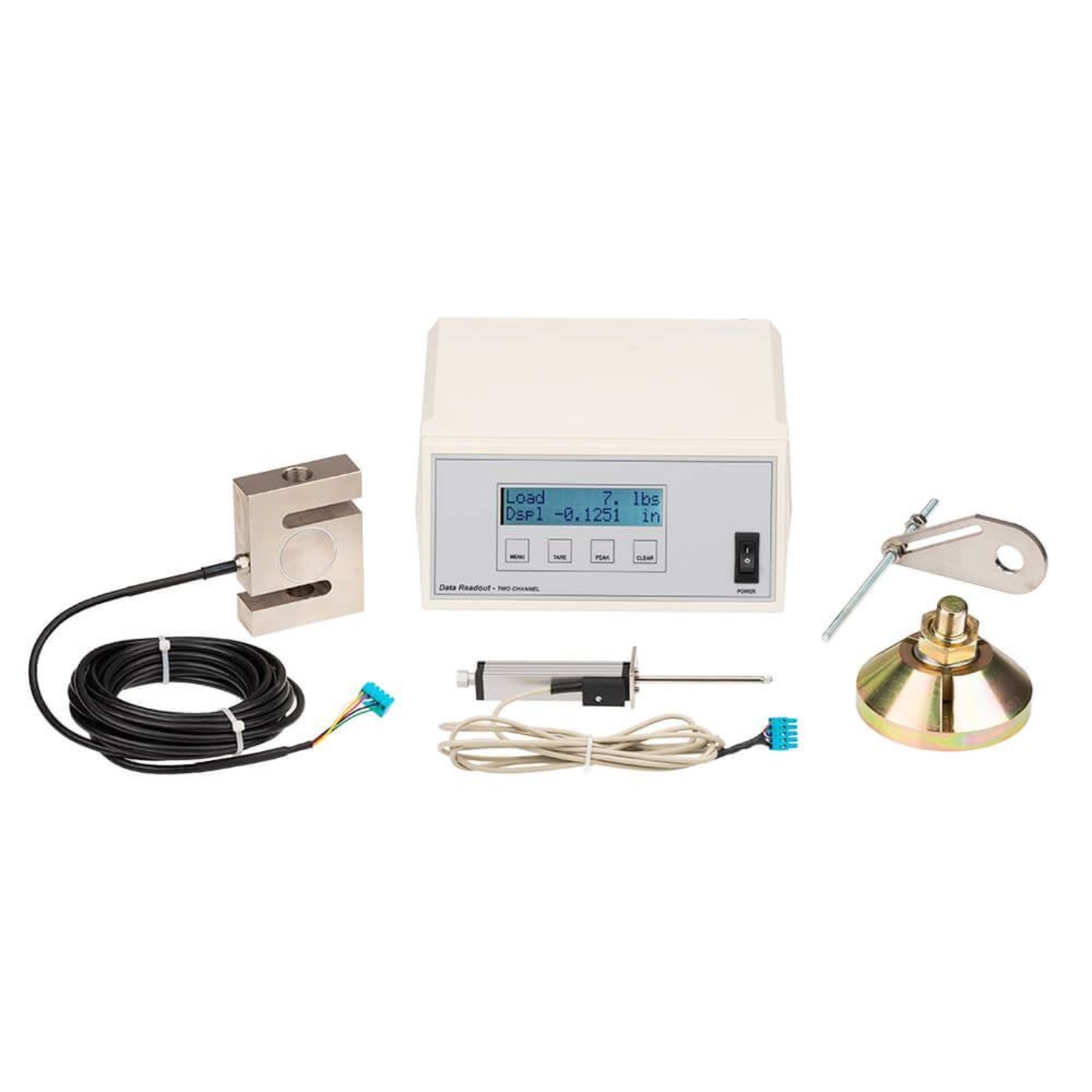

Digital Set includes a 10,000lbf (44.5kN) Load Cell, Swivel Platen, Linear Variable Displacement Transducer (LVDT). Dial Indicator/Displacement Transducer Bracket, and a Two-channel Data Readout.
Note: The Data Acquisition Software can only be used with digital component sets.

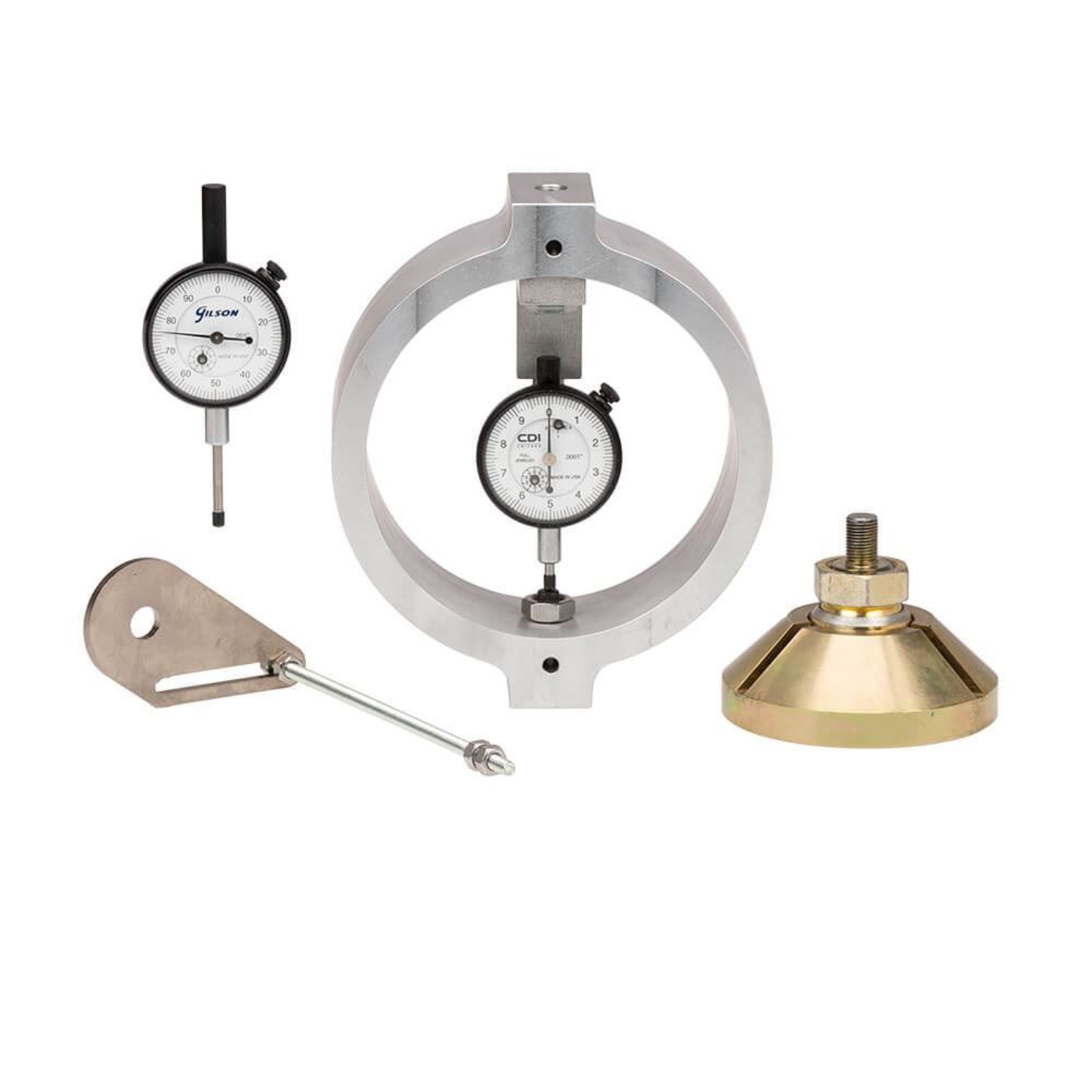

Analog Set includes a 10,000lbf (44.5kN) Load Ring, Swivel Platen, Dial Indicator/Displacement Transducer Bracket, and 1x0.001in Mechanical Dial Indicator.
Features:
- Easily outfits compatible load frames for soil-cement testing
- Contains components needed to conduct a test
Included Items:
- Digital Soil-Cement Component Set
- 4in Diameter Swivel Platen
- 10,000lbf Load Cell
- 2in Linear Variable Displacement Transducer with bracket
- Two-Channel Digital Readout (115V/50-60Hz or 230V/50Hz)
- Analog Soil-Cement Component Set
- 4in Diameter Swivel Platen
- 10,000lbf Load Ring
- 1x0.001in Dial Indicator with bracket
Accessories:
- HMA-129B Swivel Platen for vertical or horizontal positioning of the load ring
- HMA-339 Dial Indicator/Displacement Transducer Bracket is used to ensure proper position of Dial Indicator or LVDT on Load Frame
- Data Readout with two or four channels display force and displacement values and transfer data to a computer
- HMA-668 Readout Mounting Bracket positions digital readout
- Load Cell outputs load values to the digital display
- 2in Linear Variable Displacement Transducer for digital displacement measurement
- HMA-612 Soil Cement Data Acquisition Software ONLY works with the HMA-687D Component Set to record specimen information and real-time test data, calculate results, then prepare reports following ASTM requirements.
- Dial Indicators easily adapt for vertical or horizontal mounting
- Load Rings measures the load to an accuracy of ±0.5%
