Name: 2,000lbf Load Ring
SKU: HM-425
Price: 595.00 USD
Availability: InStock

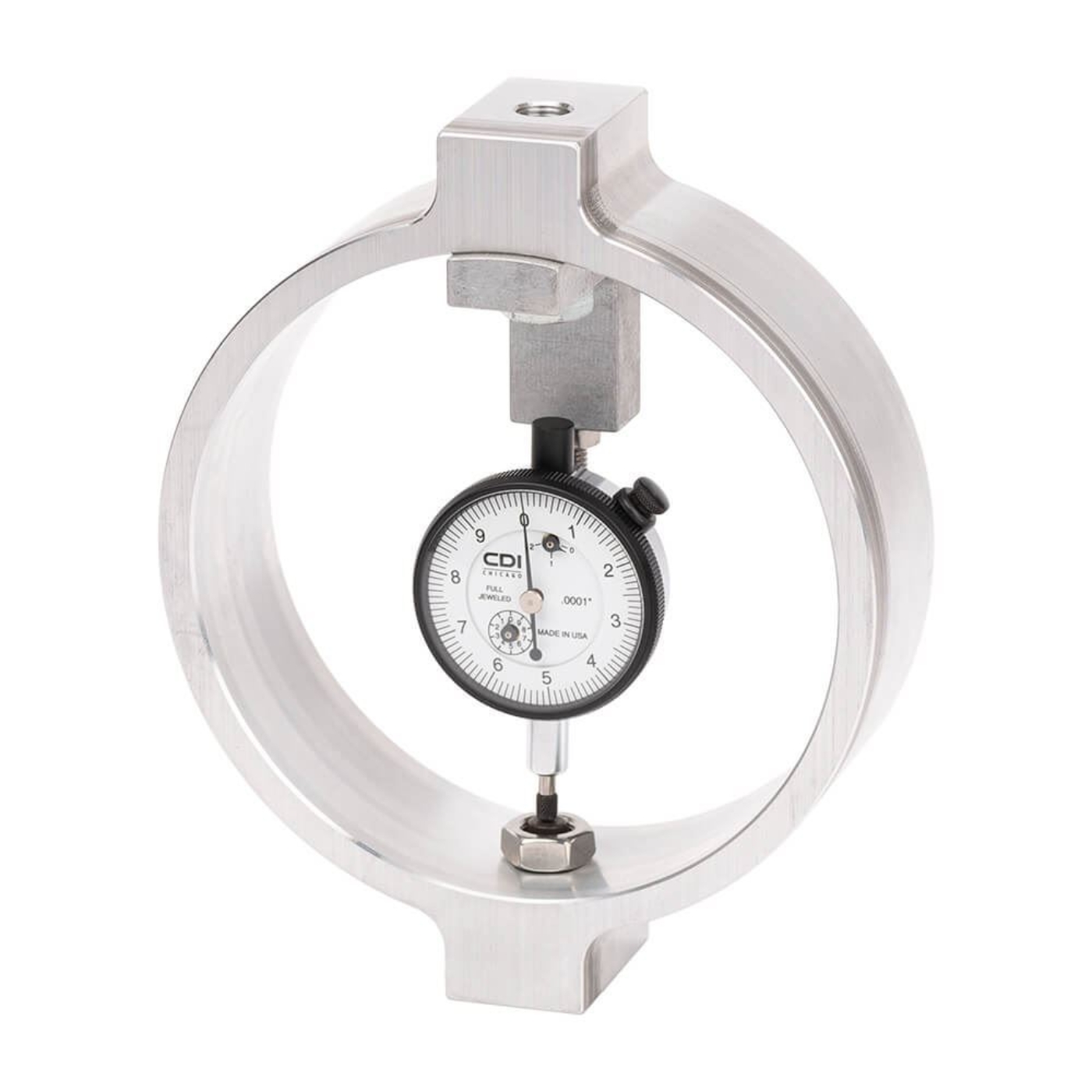

HM-425 2,000lbf Load Ring is used in California Bearing Ratio (CBR) field testing and other soil testing applications. Made of high-strength aluminum alloy, Load Rings for force measurements have repeatable elastic deformation under varying loads. Loads are measured with an accuracy of ±0.5% using the included mechanical dial indicator with 0.0001in resolution. Measurements are plotted on an included calibration chart to derive force values. Other Load Rings are available in different capacities ranging from 250 to 10,000lbf.

Features:

Used in CBR and other laboratory testing
Accurate to ±0.5%
Convenient plotting of force values on included calibration chart

Included Items:

HM-425 2,000lbf Load Ring
Mechanical Dial Indicator with 0.0001in resolution

Specifications

Attribute name	Attribute value
Load Capacity	2,000lbf
Estimated Shipping Weight	3.0lb (1.36kg)

Quick Compare

Features	250lbf Load Ring	500lbf Load Ring	1,000lbf Load Ring	1,500lbf Load Ring	2,000lbf Load Ring	5,000lbf Load Ring	6,000lbf Load Ring	10,000lbf Load Ring
Pricing	$550.00	$550.00	$575.00	$575.00	$595.00	$650.00	$650.00	$675.00
Load Capacity	250lbf	500lbf	1,000lbf	1,500lbf	2,000lbf	5,000lbf	6,000lbf	10,000lbf
Estimated Shipping Weight	2.0lb (0.91kg)	2.0lb (0.91kg)	2.0lb (0.91kg)	3.0lb (1.36kg)	3.0lb (1.36kg)	4.0lb (1.81kg)	4.0lb (1.81kg)	4.0lb (1.81kg)
