Name: 5,000lbf Load Ring
SKU: HM-427
Price: 650.00 USD
Availability: InStock

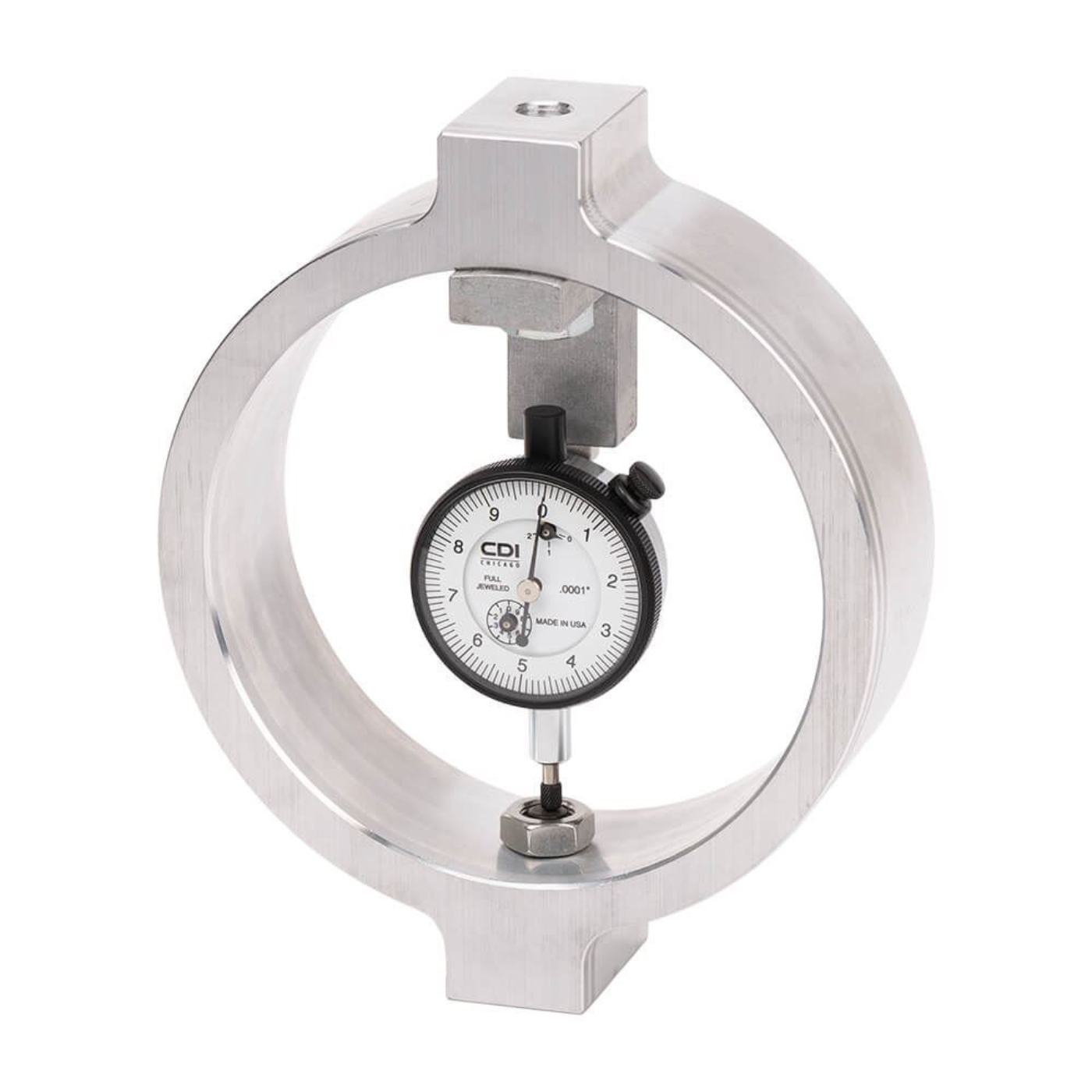

HM-427 5,000lbf Load Ring is used in conducting California Bearing Ratio (CBR) testing, and is also designed for use with other soil testing applications. This high-strength aluminum alloy Load Ring is used for force measurements, with repeatable elastic deformation under varying loads. Loads are measured with an accuracy of ±0.5% using the included mechanical dial indicator with 0.0001in resolution. Measurements are plotted on the included calibration chart to derive force values. A selection of other Load Rings is available in capacities ranging from 250 to 10,00lbf.

Features:

Ideal for CBR and other laboratory soils testing
Accuracy to ±0.5%
Allows for convenient plotting of force values on included calibration chart

Included Items:

HM-427 5,000lbf Load Ring
Mechanical Dial Indicator with 0.0001in resolution

Specifications

Attribute name	Attribute value
Load Capacity	5,000lbf
Estimated Shipping Weight	4.0lb (1.81kg)

Quick Compare

Features	250lbf Load Ring	500lbf Load Ring	1,000lbf Load Ring	1,500lbf Load Ring	2,000lbf Load Ring	5,000lbf Load Ring	6,000lbf Load Ring	10,000lbf Load Ring
Pricing	$550.00	$550.00	$575.00	$575.00	$595.00	$650.00	$650.00	$675.00
Load Capacity	250lbf	500lbf	1,000lbf	1,500lbf	2,000lbf	5,000lbf	6,000lbf	10,000lbf
Estimated Shipping Weight	2.0lb (0.91kg)	2.0lb (0.91kg)	2.0lb (0.91kg)	3.0lb (1.36kg)	3.0lb (1.36kg)	4.0lb (1.81kg)	4.0lb (1.81kg)	4.0lb (1.81kg)
