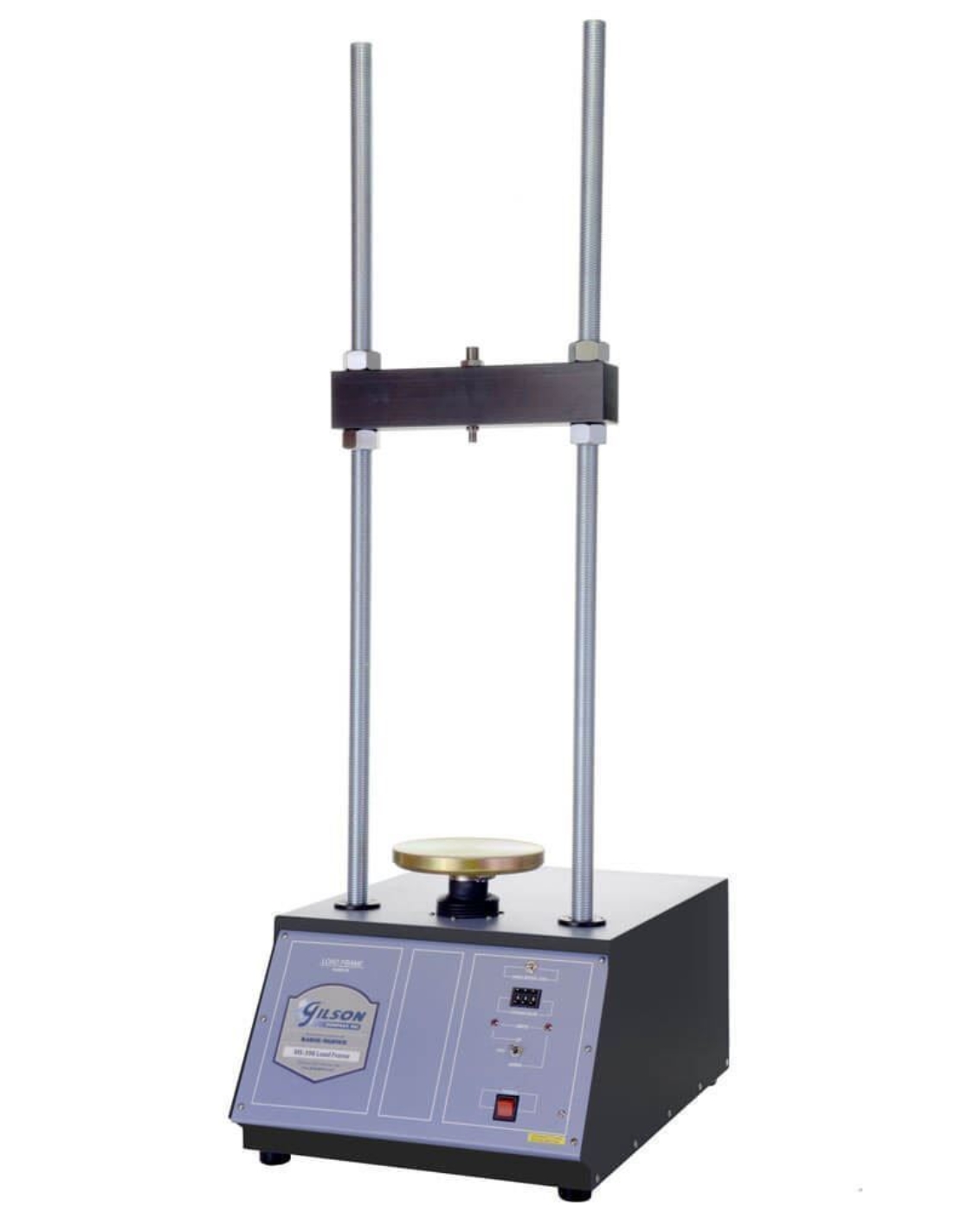

Load Frame has a variable strain rate of 0.02in–2.0in/min (0.508–50.8mm/min) and a 10,000lbf (44.5kN) capacity. This versatile load frame has a higher strain rate to accommodate the testing of asphalt and soil specimens.
When outfitted with proper analog or digital component sets and fixtures, this Marshall Load Frame meets ASTM and AASHTO requirements for performing Marshall, Lottman, Tack Coat Shear, SCB, and multiple soil tests. Strain rates or load rates are easily set with the three-segment thumbwheel selector.
The unit is housed in a 16-gauge steel cabinet with a durable enamel finish. It is equipped with a 3/4hp DC motor and controller to precisely control strain rates to ±1% of the set point. The vertical clearance of the load frame is 37.3in (947mm), and the horizontal clearance is 11.9in (302mm). Self-centering adjusting nuts make it easy and efficient to change cross-head heights. Corrosion-resistant vertical threaded rods are 1.25in (31.8mm) in diameter, and flexible boots keep dust and dirt out of the precision loading screws. An 8in (203mm) diameter lower platen is included.
Features:
- The higher strain rate of 0.02 to 2.0in/min
- Accommodates Marshall, Lottman, and soils testing methods
- 10,000lbf (44.5kN) capacity
- Self-centering adjusting nuts
Included Items:
- Load Frame, 0.02–2.0in/min (120V, 50/60Hz or 230V, 50/60Hz)
- 8in (203mm) lower platen
Accessories:

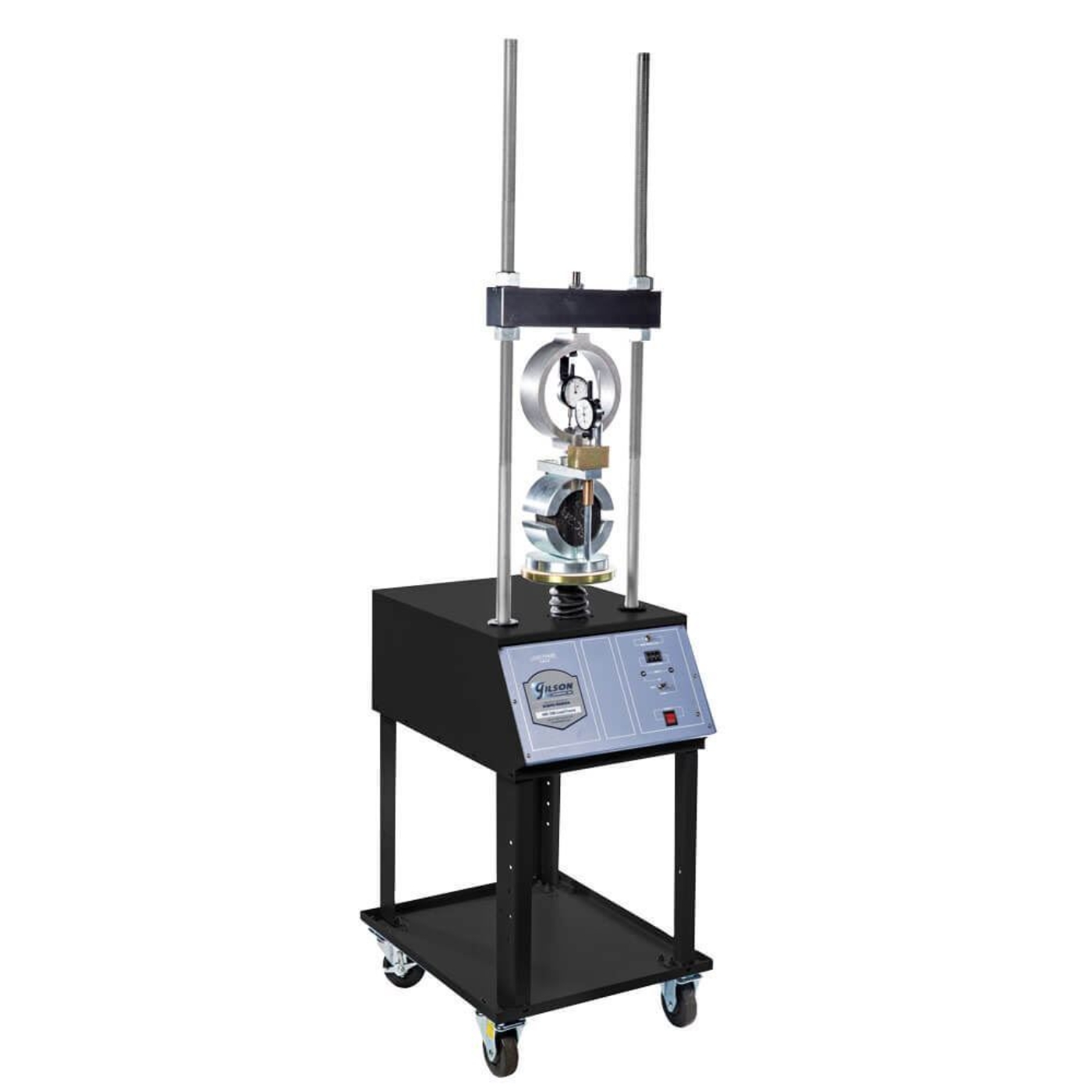

- HMA-94 Load Frame Cart positions load frames at a good working height
- Marshall Stability Component Set select from digital or analog components to equip Load Frames for Marshall Stability testing of hot-mix asphalt samples

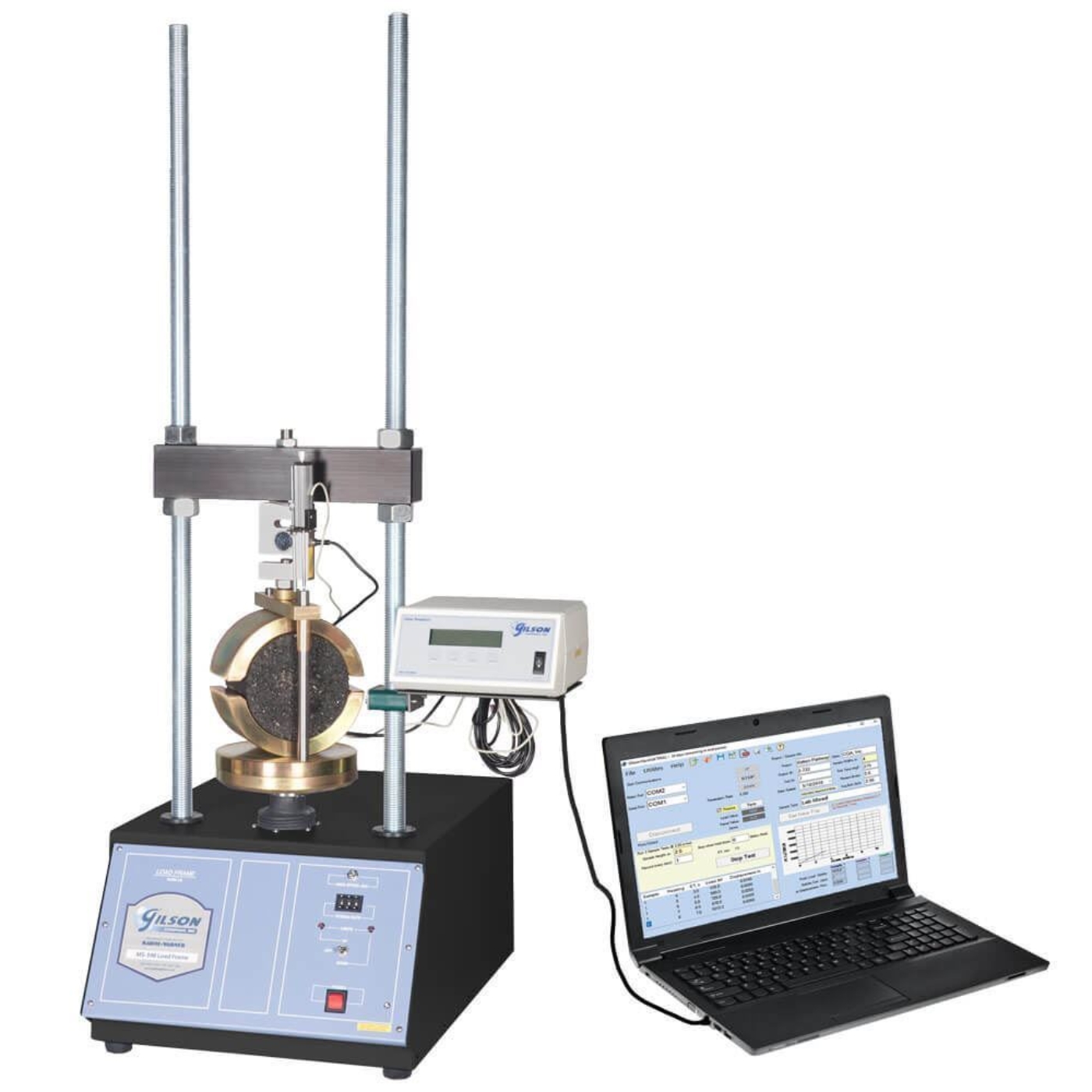

- MS-26 or MS-29 Marshall Breaking Heads have machined upper/lower segments to fit asphalt specimen

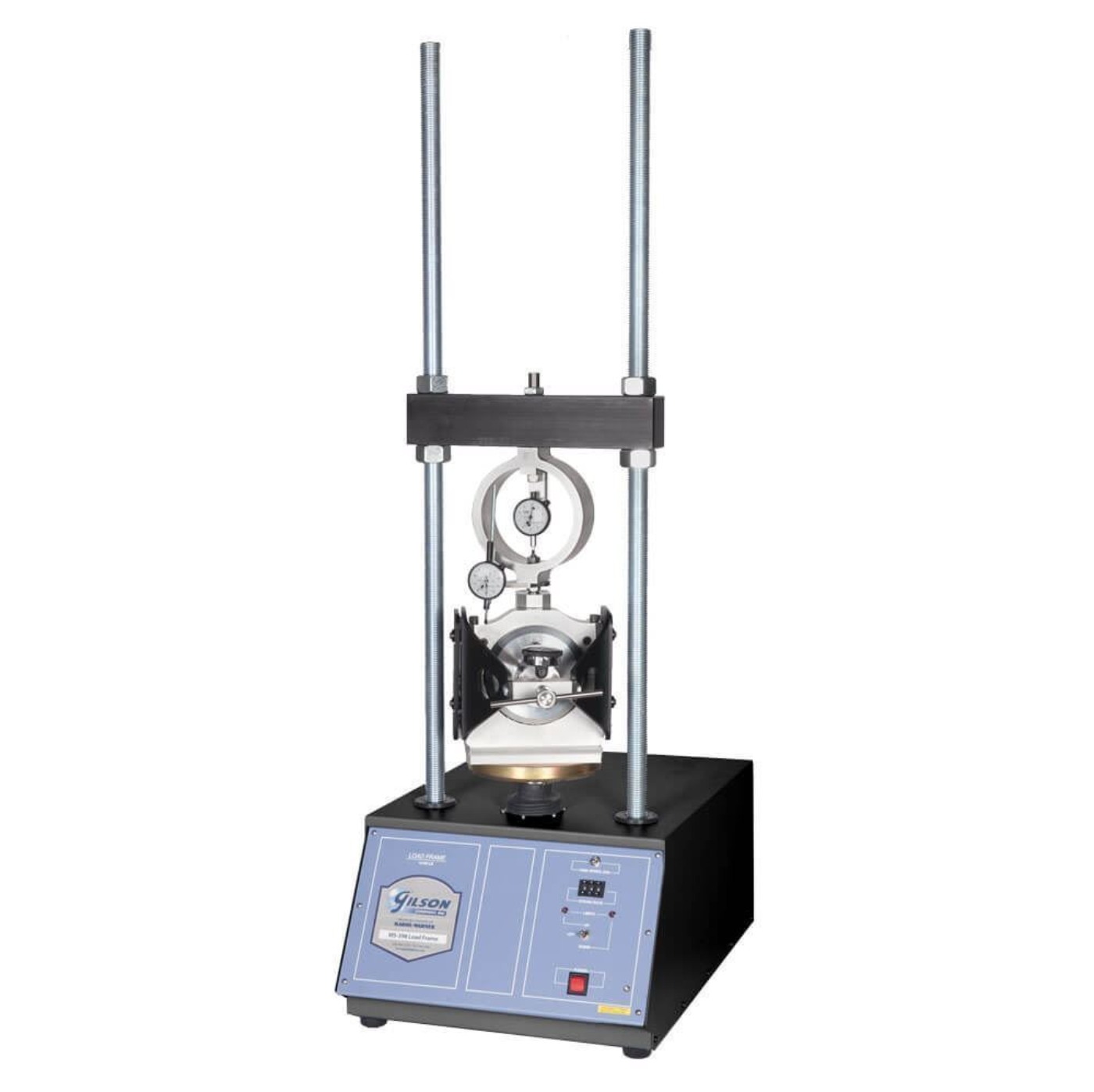

- MS-43 Asphalt Tack Coat/Interlayer Shear Strength Apparatus measures the shear strength of tack coat material between two asphalt layers

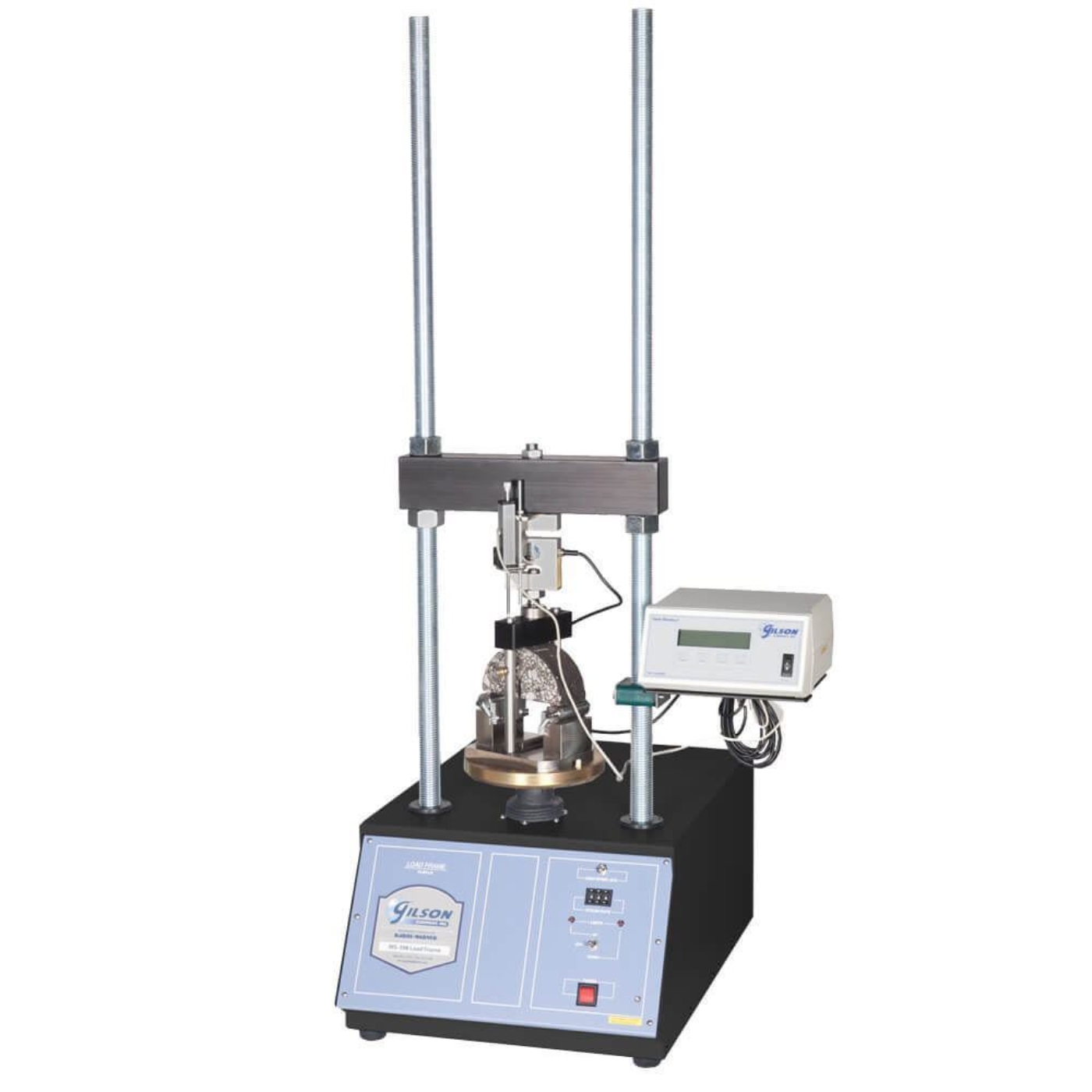

- MS-45 Semi-Circular Bend (SCB) Test Fixture mounts in Marshall Load Frame and used in testing asphalt samples up to 19mm maximum size
- MS-48 Sample Preparation Saw for preparing samples used in Semi-Circular Bend and Disk-Shaped Compact Tension testing
- Indirect Tensile Loading Fixtures for 4 or 6in specimens used in determining Indirect Tensile or Lottman values in testing
- Sample Ejectors available for 4in molds only or 4 or 6in molds enable easy extrusion of samples from molds
- MS-27 Budget Sample Ejector for use with a load frame during specimen removal
- Dial Flow Meters for manually measuring specimens in Marshall Stability tests
- MSA-134 Data Acquisition Software works with the MSA-860D Digital Component Set to record specimen information and real-time test data, calculate results, then prepare reports following ASTM requirements.
