CBR Component Sets are available with analog or digital components designed for quick installation on Load Frames and most other manufacturers. The components feature sophisticated instrumentation required to measure load and penetration for California Bearing Ratio (CBR) Tests. Each component in the set can be easily installed on the Load Frames with included fixtures.

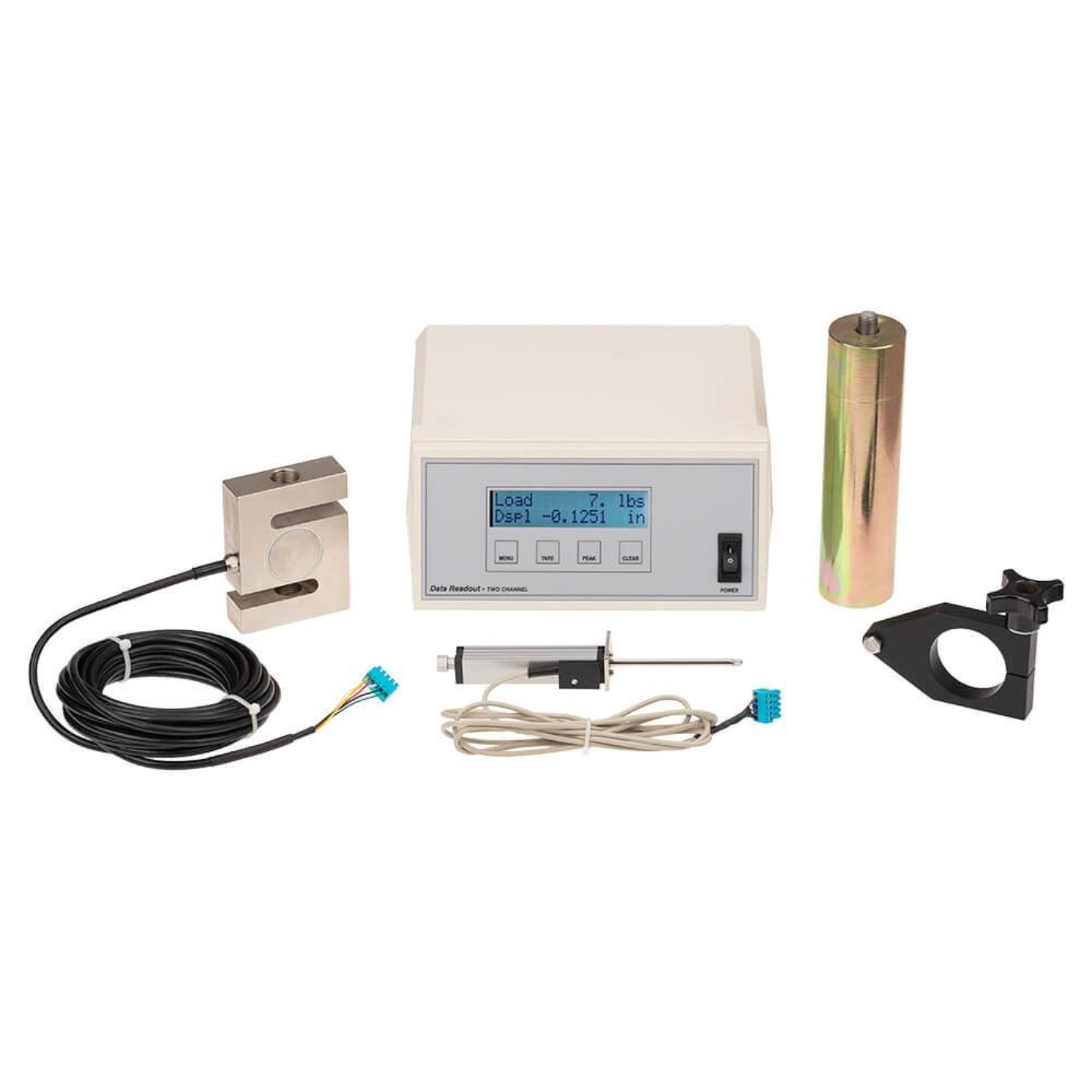

Digital Set includes a Two-Channel Data Readout, 10,000lbf (44.5kN) Load Cell, 2in (50.8mm) Linear Variable Displacement Transducer (LVDT) with a holder, and the CBR/LBR Penetration Piston. Gilson's Data Acquisition Software can be purchased separately to obtain real-time testing data, calculations, and prepares reports in accordance with ASTM and AASHTO requirements.
Note: The Data Acquisition Software can only be used with digital component sets.

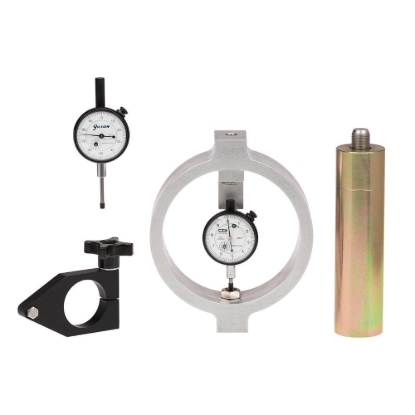

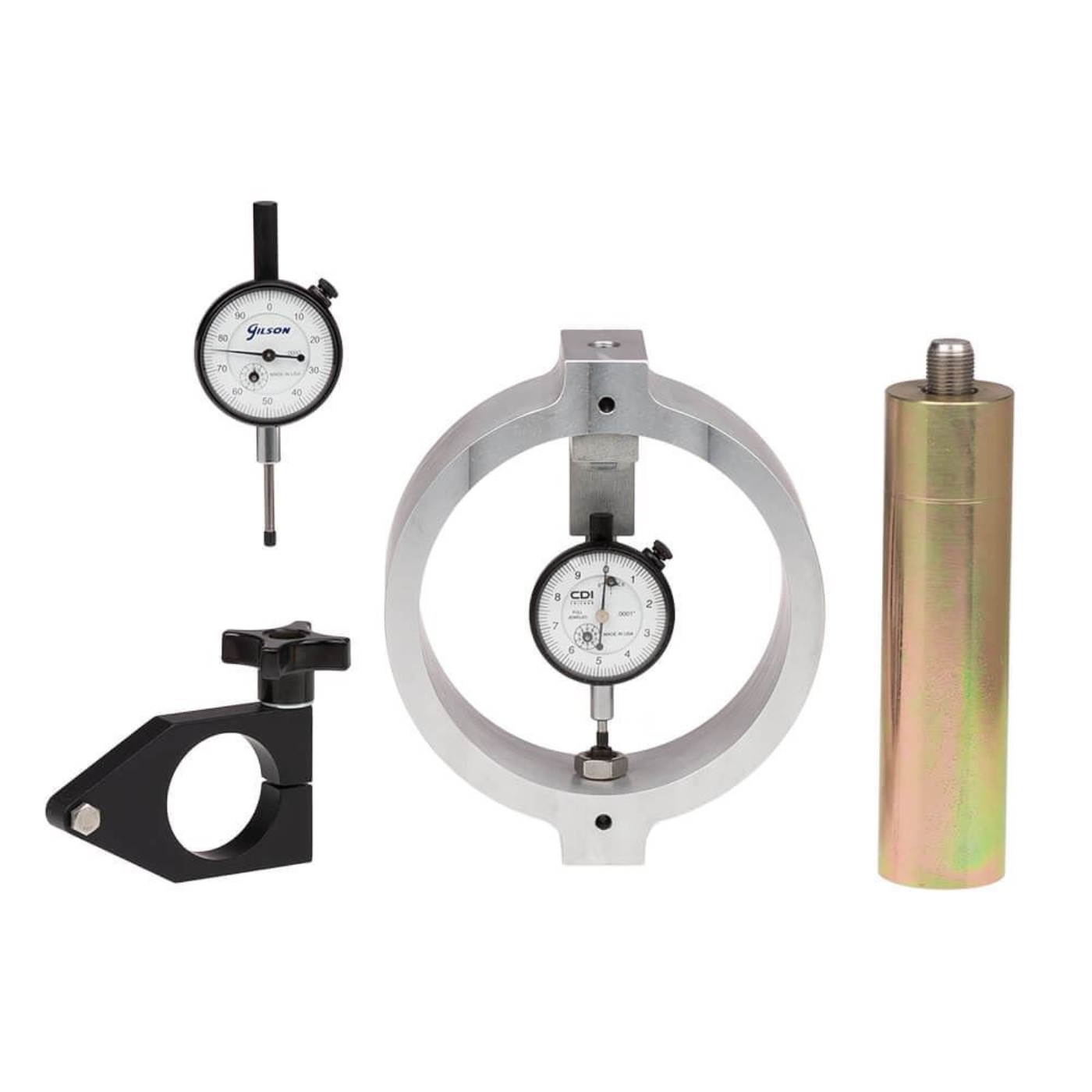

Analog Set includes a 6,000lbf (26.7kN) or 10,000lbf (44.5kN) capacity Load Ring, CBR/LBR Penetration Piston, and a 1x0.001in Dial Indicator with a holder for displacement readings The Load Ring is machined from a high-strength aluminum alloy plate for repeatable compression measurements and is supplied with a calibration graph.
Features:
- The digital design includes software for data transfer to the user’s PC
- Simple installation of components on the load frame
Included Items:
- Digital CBR Component Set
- Two-Channel Data Readout (115V/50-60Hz or 230V/50-60Hz)
- 10,000lbf Load Cell
- 2in Linear Variable Displacement Transducer with Holder
- CBR Penetration Piston
- Analog CBR Component Set
- Load Ring (6,000lbf or 10,000lbf)
- CBR Penetration Piston
- 1x0.001in Dial Indicator with Holder
Accessories:

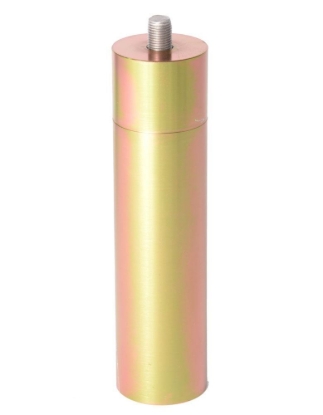

- Penetration Pistons available with 1/2 or 3/4in threaded male connectors

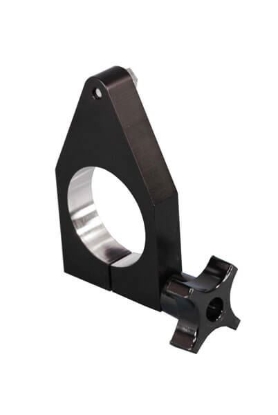

- BRA-34 CBR Transducer/Dial Indicator Holder for proper positioning of transducers or dial indicators
- Data Readout with two or four channels display force and displacement values and transfer data to a computer

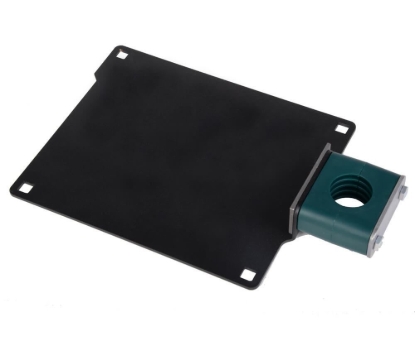

- HMA-668 Readout Mounting Bracket positions digital readout
- HM-430D Load Cell outputs load values to the digital display

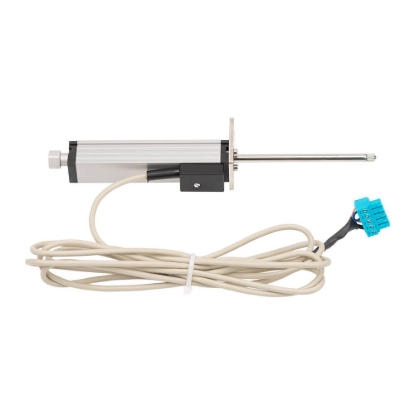

- HM-740 2in Linear Variable Displacement Transducer for digital displacement measurement
- HMA-609 CBR/LBR Data Acquisition Software ONLY works with the HMA-685D CBR/LBR Digital Component Set to record specimen information and display real-time test data, calculate results, then prepare reports following ASTM and AASHTO requirements.
- Dial Indicators easily adapts for vertical or horizontal mounting
- Load Rings measures the load to the accuracy of ±0.5%
